Basic Management Of LDAP Users

This post builds on the LDAP installation guide. Before reaching for a web interface, working with the command-line tools directly builds a solid understanding of how LDAP operates. Three commands cover the basics:

• ldapadd
• ldapsearch
• ldapmodify

This post covers ldapadd and ldapsearch. The basic invocation for ldapadd is:

ldapadd [OPTIONS] [CREDENTIALS] filename

An LDIF file populates the LDAP database with users and groups.

Users and Groups

Start by adding two Organizational Units: Users and Groups. Create a file named ou.ldif:

nano /etc/ldap/ou.ldif

dn: ou=Groups,dc=kirk
ou: Groups
objectClass: top
objectClass: organizationalUnit

dn: ou=Users,dc=kirk
ou: Users
objectClass: top
objectClass: organizationalUnit

Add both OUs with ldapadd:

ldapadd -x -D cn=admin,dc=kirk -W -f ou.ldif

Output:

adding new entry "ou=Groups,dc=kirk"
adding new entry "ou=Users,dc=kirk"

Next, add a user entry. Create users.ldif:

nano /etc/ldap/users.ldif

dn: cn=JKP,ou=Groups,dc=kirk
cn: JKP
gidNumber: 5000
objectClass: posixGroup

dn: uid=JKP,ou=Users,dc=kirk
uid: JKP
uidNumber: 5000
gidNumber: 5000
cn: Jonas Pedersen
sn: Pedersen
objectClass: posixAccount
objectclass: organizationalPerson
loginShell: /bin/bash
homeDirectory: /home/JKP

Field meanings:

• uid = username
• cn = common name
• sn = surname

ldapadd -x -D cn=admin,dc=kirk -W -f users.ldif

Output:

adding new entry "cn=JKP,ou=Groups,dc=kirk"
adding new entry "uid=JKP,ou=Users,dc=kirk"

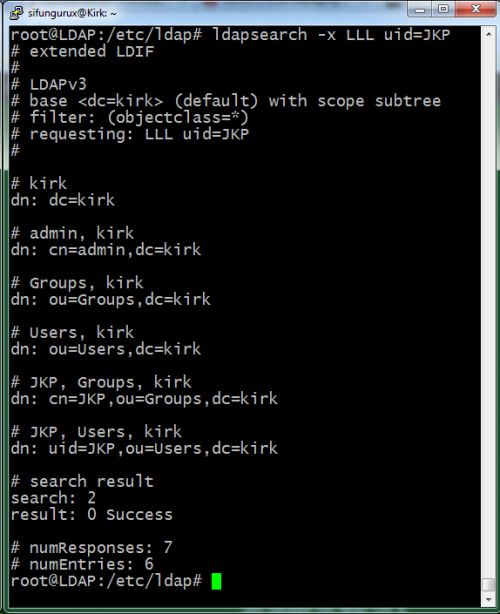

Verify the entries landed in the LDAP server:

Adding a Client to the Mix

Most guides for this step predate 2014, when the LDAP service structure changed. The package to install is libpam-ldapd, which pulls in:

• libnss-ldapd
• nscd
• nslcd

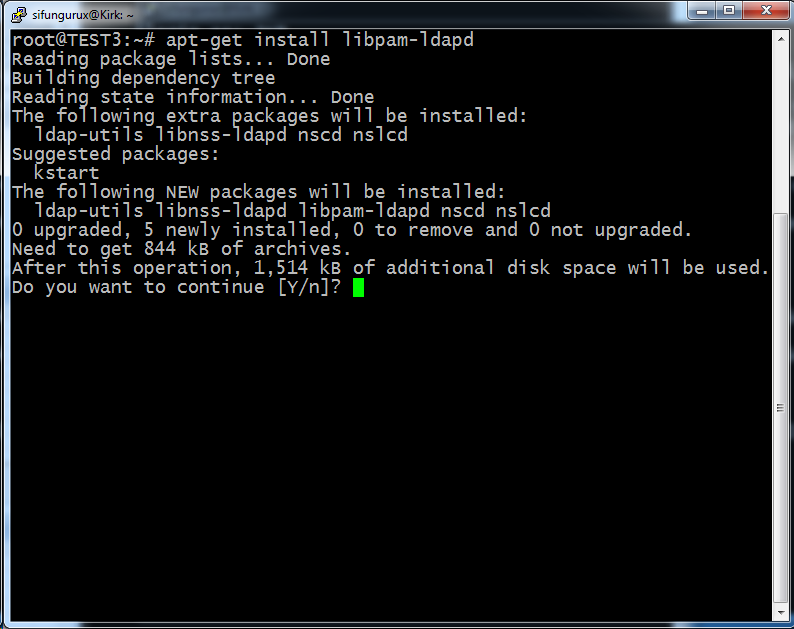

apt-get install -y libpam-ldapd

The installer prompts for three things:

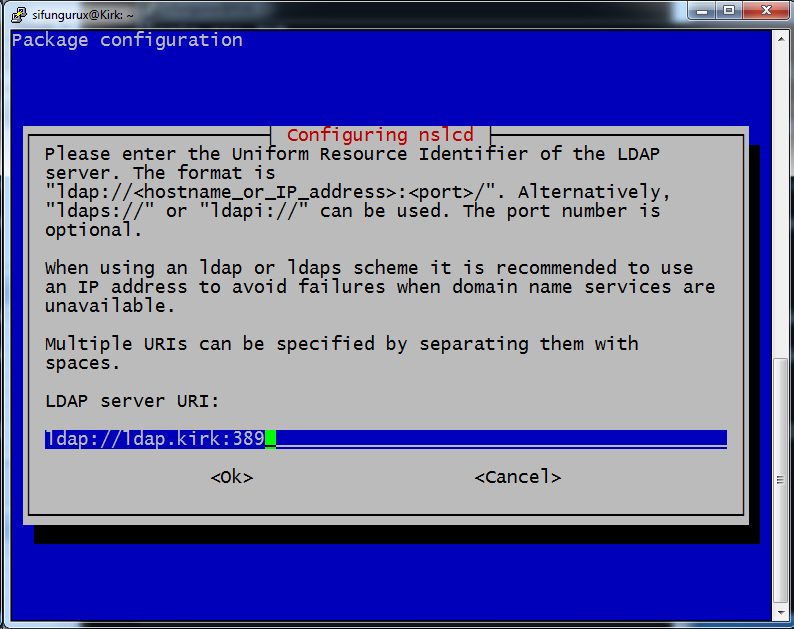

1. LDAP server address
2. Distinguished Name
3. Services to configure

If you have working DNS, use the hostname instead of an IP address. Without it, add two URIs to the configuration: one with the hostname and one with the IP as a fallback.

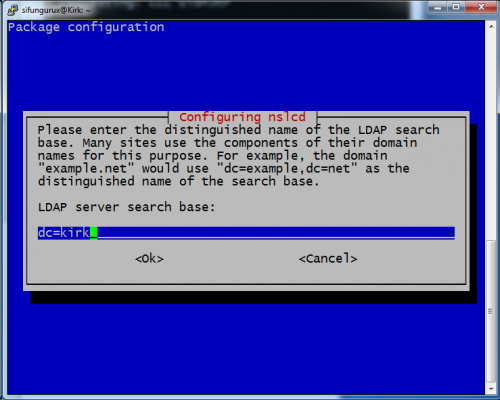

The domain is *.kirk, so set the domain container to dc=kirk:

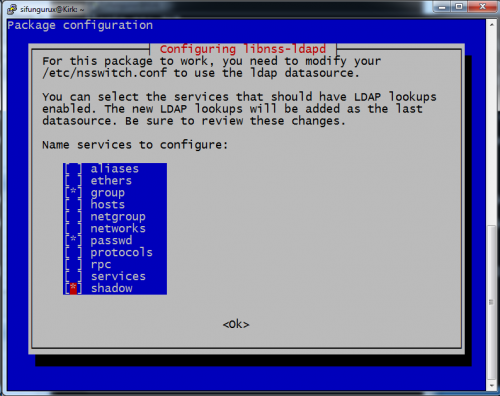

Choose which services LDAP should support. This setup uses group, passwd, and shadow:

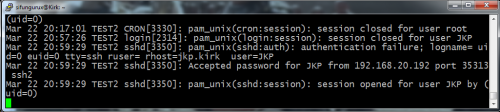

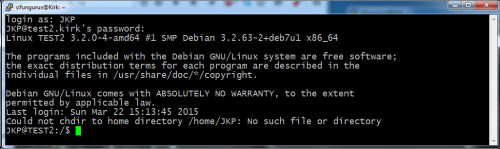

Press OK. The services restart and LDAP login becomes available. The first screenshot below shows the login screen; the second shows the output of tail -f /var/log/auth confirming a successful authentication:

This configuration is intentionally minimal. Security hardening and encryption between client and server are outside the scope of this post.
